Lime working remains in Dudley

List Entry Summary

This monument is scheduled under the Ancient Monuments and Archaeological Areas Act 1979 as amended as it appears to the Secretary of State to be of national importance. This entry is a copy, the original is held by the Department for Culture, Media and Sport.

Name: Lime working remains in Dudley

List entry Number: 1021381

Location

The monument may lie within the boundary of more than one authority.

County:

District: Dudley

District Type: Metropolitan Authority

Parish:

National Park: Not applicable to this List entry.

Grade: Not applicable to this List entry.

Date first scheduled: 05-Oct-2004

Date of most recent amendment: Not applicable to this List entry.

Legacy System Information

The contents of this record have been generated from a legacy data system.

Legacy System: RSM

UID: 35127

Asset Groupings

This list entry does not comprise part of an Asset Grouping. Asset Groupings are not part of the official record but are added later for information.

List entry Description

Summary of Monument

Legacy Record - This information may be included in the List Entry Details.

Reasons for Designation

Limestone or chalk has been the basic ingredient for lime mortar from at least Roman times. Since the medieval period, lime has also been used as agricultural fertiliser and, since the early 19th century, widely used in a variety of other industries: as a flux in blast furnaces, in the production of gas and oil, and in the chemical, pharmaceutical and food industries. The lime industry is defined as the processes of preparing and producing lime by burning and slaking. The basic raw material for producing lime is limestone or chalk: when burnt at high temperature (roasted or calcined), these rocks release carbon dioxide, leaving `quicklime' which, by chemical reaction when mixed with water (`slaking'), can be turned into a stable powder - lime. Lime burning sites varied in scale from individual small lime kilns adjacent to a quarry, to large-scale works designed to operate commercially for an extended market and often associated with long distance water or rail transport. Lime burning as an industry displays well-developed regional characteristics, borne out by the regional styles of East Anglia, West Gloucestershire or Derbyshire. The form of kilns used for lime burning evolved throughout the history of the industry, from small intermittent clamp and flare kilns, to large continuously fired draw kilns that could satisfy increased demand from urban development, industrial growth and agricultural improvement. Small-scale rural lime production continued in the later 19th and 20th centuries, but this period of the industry is mainly characterised by large-scale production and the transfer of technologies from the cement and other industries. The demand for mortars grew steadily during the 19th and 20th centuries. The successful production of mortars made with artificial cement represented an economic challenge to lime production and gradually replaced the use of lime mortars in major construction and engineering projects. From a highly selective sample made at national level, around 200 lime industry sites have been defined as being of national importance. These have been defined to represent the industry's chronological depth, technological breadth and regional diversity.



The lime working remains in Dudley include a well-preserved limestone quarrying landscape with evidence of both surface and underground working with associated canals, lime kilns and other structures dating from the late medieval period throughout the Industrial Revolution until the modern era. Excavation has demonstrated the survival of several phases of features within the caverns, including the survival of wood and iron implements, the fixtures and fittings associated with railway and canal transportation, as well as evidence of shot holes and tool marks preserved on the cavern faces. Together these provide evidence for the history and technological development of lime working from its earliest days until the modern period, demonstrating developments in tools, extraction methods and transportation. Survival of excellent documentary and cartographic sources combined with physical archaeological remains illustrates the economic importance of the lime industry in Dudley, including details of the working conditions endured by the workforce over a considerable period of time.

History

Legacy Record - This information may be included in the List Entry Details.

Details

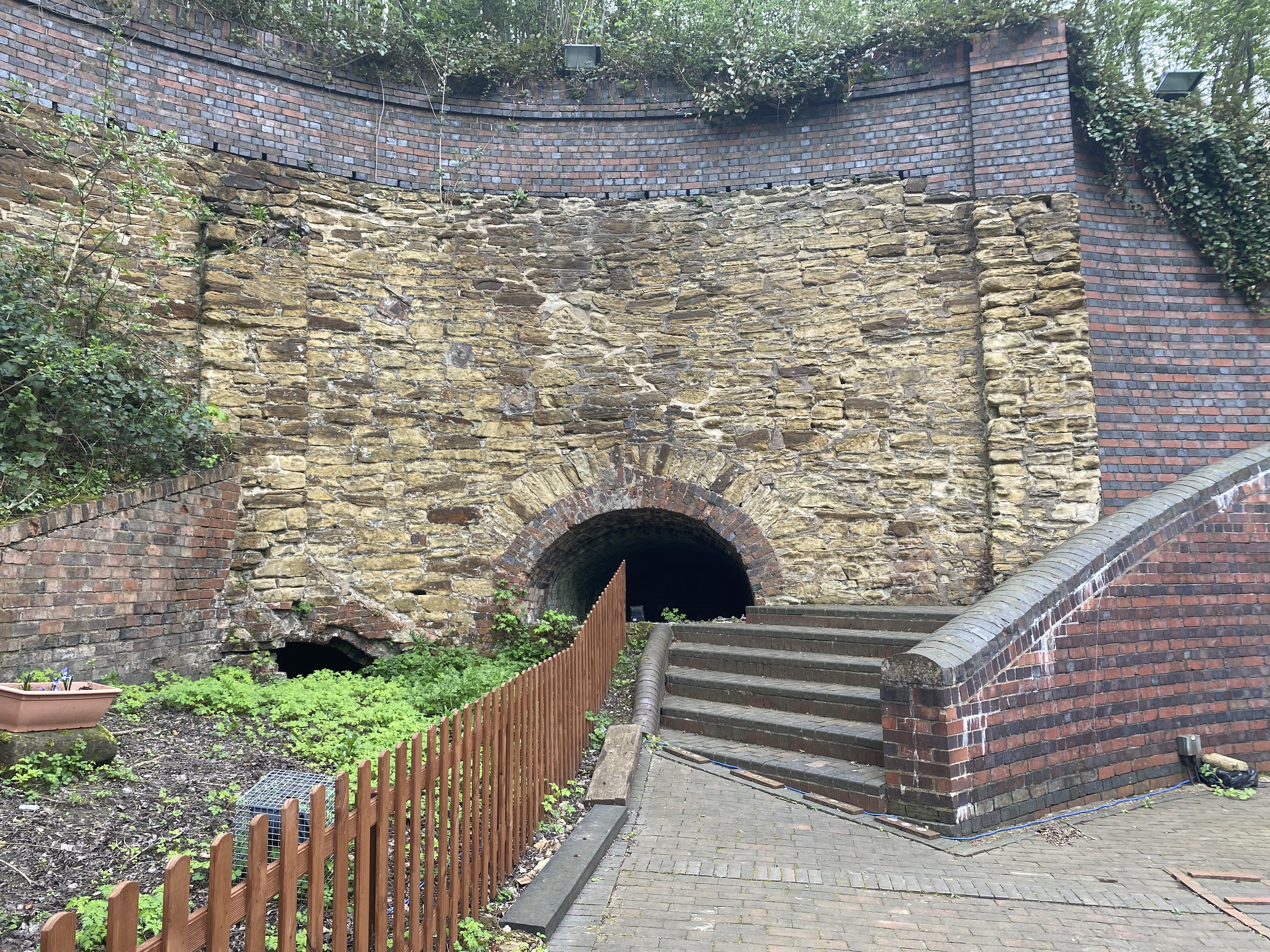

The monument includes the best surviving remains of the limestone quarrying, mining and processing industry in Dudley. It includes the remains of the quarries, mines and caverns, the lime kilns, the horseshoe kilns, the lime pyes and part of the canal transport network at Wren's Nest, Mon's Hill, Castle Hill and the Black Country Museum. Most of the remains are located upon two parallel outcrops of Much Wenlock Limestone, deposited in the Silurian Period, forming steep-sided ridges oriented approximately north-south and standing north of Dudley town centre. Lime has been mined here for centuries; the stone for the 11th century Dudley Castle and 12th century St James Priory was obtained from quarries on Castle Hill. From an early date most lime was, however, used in the production of lime mortar and lime washes, and from the 17th century in agriculture to improve soil conditions. These early uses involved surface quarries and simple processing, including burning to produce quicklime by means of kilns constructed close to the source of the lime. These kilns or `lime pyes' were often temporary structures, dug into the ground and filled with layers of limestone and charcoal. Once sealed and fired, they burned for a week until quicklime was produced. They continued in use from the late medieval period until the Industrial Revolution. The earliest record of a grant for lime works on the Wren's Nest outcrop dates from 1634, and throughout the 17th century references are made to lime works, including a 25 year farm on lime works at the Old Park, taken out by John Darby father of Abraham Darby. Following the discovery, in the 18th century, that limestone could be used as a flux when smelting iron, demand increased and limestone quarries were widely established. In 1725 Lord Dudley's bailiff estimated the value of the Wren's Nest lime workings to be £250 per annum. John Snape's map of 1785 illustrates a quarry on Castle Hill. The Dudley Estate ran the quarries for most of their history, leasing them out only for a short time during the slump of the 1790s to early 1800s. By 1796 Charles Norton was extracting 60,000 tonnes per annum from the Wren's Nest and Castle Hill quarries, although surface limestone was exhausted the miners began to excavate huge caverns, later given exotic names such as Singing Cavern, Dark Cavern and Mud Hole Cavern. As well as using steam winding engines to bring limestone up to the surface via shafts, subterranean canals were built to provide the simplest means of transport for extracted material. The first canal, known as `Lord Ward's Arm', and constructed in 1776, linked works on the east side of Castle Hill to the Birmingham Canal Navigation, with an underground terminus at Castle Mill Basin. From here other canals were constructed. The Dudley Tunnel, which linked the canal networks on both sides of the watershed was the second longest canal tunnel in Britain. This network of subterranean canals joined the caverns and scattered lime works and included several underground basins and wharves. Plate railways were installed for wagons to carry limestone from the quarry faces down to the basins and wharves. The hub of the system was the huge Castle Mill Basin, which, in common with several other basins, later had the roof removed to allow better access and lighting. A group of horseshoe-shaped lime kilns was constructed at the entrance to the tunnels outside the Tipton Portal. By the mid-19th century the limestone in the underground workings beneath Castle Hill was starting to run out, and is shown as a wooded area called `the wilderness' on a map of 1839, with a number of leisure walks and carriage drives running north-south along the ridge. Some of the abandoned caverns were used as tourist features; Lord Dudley installed gas lighting in Dark Cavern and used it for concerts, balls and lectures. Limestone working continued at greater depth away from Castle Hill, most being transported to Lord Dudley's lime works by the Tipton Portal. In 1842 a bank of massive, continuous feed draw kilns, with their own canal basin, was erected behind the horseshoe kilns. With the advent of the railway in the 1850s, a further series of kilns was built at the East Castle Works, and sidings and a goods station had been constructed there by the 1880s. Although the location of these works is well documented, the level of archaeological survival at the site is uncertain and at present the East Castle Works is not included in the scheduling. Mining continued at Wren's Nest until 1924 and the Wren's Nest lime works continued to work until 1935, with small amounts of limestone being fired until the wartime blackout restrictions led to the closure of the kilns in 1939. Both the Castle Hill and Wren's Nest/Mon's Hill outcrops preserve evidence of surface workings including numerous small pits representing smaller, earlier quarries and crown holes, caused by collapses into later underground workings. Later surface workings were characterised, on both outcrops, by deep linear excavations, often in the form of steep-sided trenches running along the sides of the hill, following the most accessible outcrops of limestone. Other surface features include the line of the subterranean canal at Mons Hill, visible as a series of breather shafts dug along its course. At least four lime pyes have been located on the Wren's Nest/Mons Hill outcrop and a further two on the Castle Hill outcrop. A pair of later draw kilns is located on the western slope of Wren's Nest, constructed in 1902 of brick and stone and surviving to a height of approximately 6m. Remains of four horseshoe kilns surviving up to a height of approximately 2.5m are also visible. A second group of kilns stands at Tipton Portal. These include three different types of kiln. A later 18th century draw kiln is situated on the south side of the Portal, which retains its draw arch and internal details. East of this, also on the south side of the canal, are the remains of three early 19th century horseshoe or flare kilns. To the south of these stands a bank of four massive mid-19th century draw kilns, accessed by a separate canal arm with a large basin. These large draw kilns were originally constructed in the 1840s as a set of three with vertical brick shafts accessed by tunnels separating them. These tunnels may have been used for transferring material from different levels. A fourth kiln was built on to the east side of the bank and is apparently of a larger volume than the others. A mineral railway provided access to the top of the bank from which the kilns were loaded, and a loading crane was installed on the top of the bank in 1910. Although many of the subterranean caverns have been infilled, or their entrances have been blocked for health and safety reasons, several of the larger examples associated with the underground canal network survive. The entrance to the Seven Sisters Cavern at Wren's Nest survives on the west of the hillside, with huge columns of rock left intact to support the roof, while on the Castle Hill outcrop, Singing Cavern and Stores Cavern survive. The remains of shot holes drilled into the limestone, which filled with gunpowder, stopped with clay then fired to break-up the limestone, can be seen in the walls and roofs of some of the surviving caverns. In 1998 archaeological observation undertaken in Wren's Nest basin recorded at least three layers of L-shaped plate rails on metal sleepers surviving beneath the wharf area, with a single set of flanged wrought iron rails, dating from modernisation in the 1830s, lying above them. Within the subterranean canal network several wharves survive. These appear to have been fronted by baulks of timber adjacent to brick-built retaining walls. Chains and rails used to secure boats for tipping survive, as do miners' walkways constructed of thick planks 12 inches wide supported by metal spikes hammered into the walls with iron rings, possibly used for rope handrails. Spikes in the roof of the Wren's Nest East Basin are believed to have held a hanging bridge giving access to both sides of the basin. A number of features are excluded from the scheduling: the small two-storey brick cottage adjacent to the kilns, remains of the stone-built single-story stable block, all modern paths, roads, surfaces, fences, walls, street, park and garden furniture; all modern dwellings, buildings, the housing estates centred on Priory Road, the college buildings on Wren's Nest and the animal shelters and enclosures of Dudley Zoo; the modern sections of the Dudley canal tunnel driven to provide boat trip access and the modern fixtures and fittings associated with the boat trip, however, the ground beneath all these features is included. The ground beneath the housing estates centred on Priory Road is excluded from the scheduling to a depth of 4m, although the subterranean remains of the lime industry and canals further below are included.

MAP EXTRACT The site of the monument is shown on the attached map extract.
